Dexter 84546UC3 Standard Hub and Drum Assembly - 5 on 4-1/2 - L68149 and L44649 Bearings - 10 Inch x 2-1/4 Inch Drum

Brands:
Product Number: RED-84546UC3
Vendor Number: 84546UC3
$118.95 $98.99

Dexter 84546UC3 Standard Hub and Drum Assembly - 5 on 4-1/2 - L68149 and L44649 Bearings - 10 Inch x 2-1/4 Inch Drum

Product Number: RED-84546UC3
Vendor Number: 84546UC3
$118.95 $98.99 You Save $19.96 (16.8%)
Adding this item to your cart will qualify your order for US domestic

QTY:

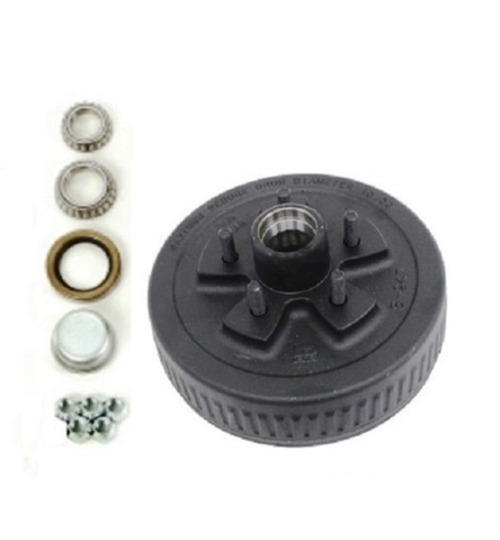

This hub-and-drum assembly fits 3,500-lb axles with #84 spindles. Compatible with electric or hydraulic brakes. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included. This hub & drum is designed for use with a #84 spindle. Each hub has a 1,750lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool.



Product Features

  • Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
    • Compatible with electric and hydraulic drum brakes
  • Sturdy iron construction
  • Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
  • Hub and drum are made in the USA



Product Specifications

  • Application: 3,500-lb trailer axles with #84 spindles
  • Drum dimensions: 10" diameter x 2-1/4" wide
    • Works with 10" brake assembly
  • Bolt pattern: 5 on 4-1/2"
  • Grease cap flange diameter: 1.986"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 1,750 lbs



Bearing, Race, & Seal Information

  • Bearings (included)
    • Inner bearing: L68149 (1.378" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L68111
    • Outer race: L44610
  • Grease seal (included): 58846
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"



Dexter Trailer Hubs and Drums - 84546UC3

  • 5 on 4-1/2 Inch
  • For 3500 lbs Axles
  • Hub with Integrated Drum
  • 13 Inch Wheel
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • Standard
  • L44649
  • L68149
  • Dexter





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
