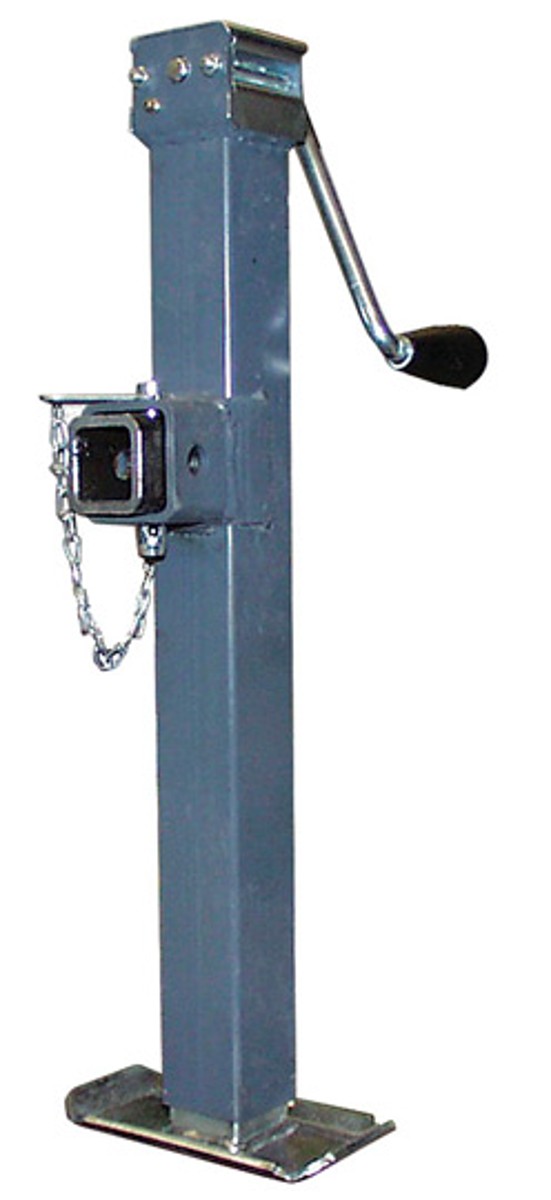

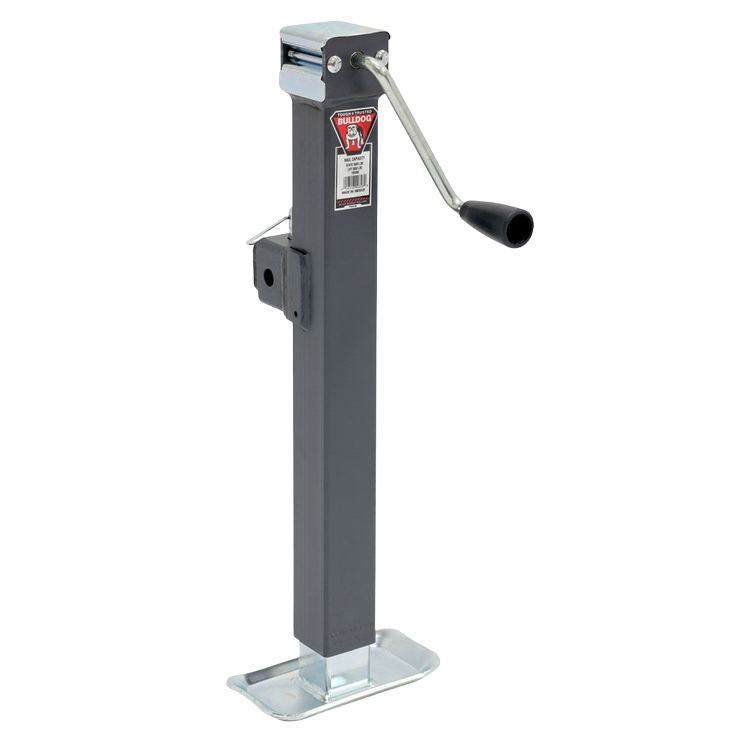

Bulldog 195362 Pipe Mount Swivel Jack - 5,000 Lbs - 15 Inch Lift - 15.1 Inch Bracket Height
Bulldog 195362 Pipe Mount Swivel Jack - 5,000 Lbs - 15 Inch Lift - 15.1 Inch Bracket Height
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Square up for side load strength compared to round jacks of similar capacities, Bulldog's 5,000 lb support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing overall capacity.
Product Features:
- 12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
- 4.62" outer tube overlap at full extension for additional side load strength
- Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
- Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
- Mount is included
Product Specifications:
- Weight Carrying (WC): Up to 5,000 lbs
- Length: 15"
- Rise: 15.10"
- Drop: 30.10"
- Hole Size: 9.25"
- Dimensions: 31" Length x 8" Width x 8.5" Height
- Weight: 19 lbs
(A) Retracted=15.1"
(B) Extended=30.1"
(C) Clearance=9.25"
