Dexter 23-402 12-1/4 Inch x 3-3/8 Inch Left Hand Duo-Servo Hydraulic Brake Assembly - 4 Bolt - 9K Lbs Per Pair - 023-388-00
Dexter 23-402 12-1/4 Inch x 3-3/8 Inch Left Hand Duo-Servo Hydraulic Brake Assembly - 4 Bolt - 9K Lbs Per Pair - 023-388-00
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

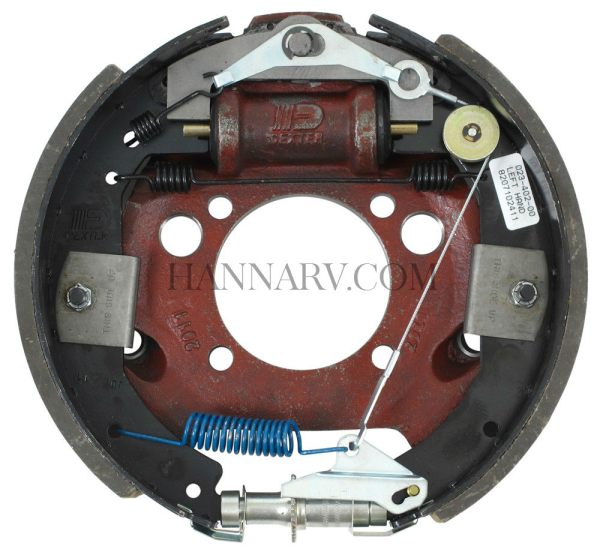

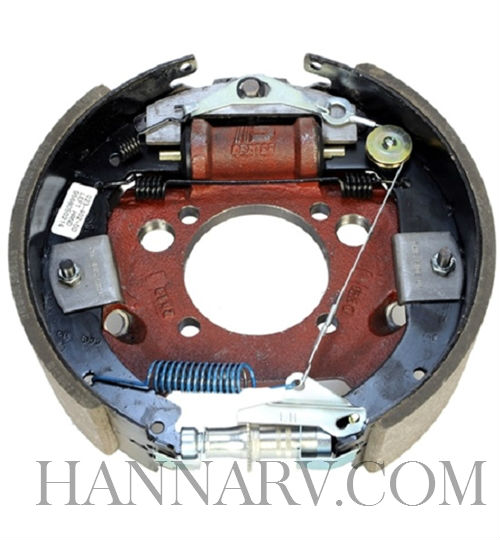

Dexter 12-1/4" x 3-3/8" 8000lb-9000lb (4 bolt flange) Left hand hydraulic brake. Complete assembly. Self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Mounts with 4 bolts (not included). Locknuts-6-46 and bolts-7-97 sold separately.
» Was redesigned with forward self-adjusting feature in 1997.
• Fits Dexter 8000lb-9000lb axles(with cast backing and 4 bolt flange)
• For use with a 12 1/4" inside diameter 3 3/8" deep drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Left hand(driver's side)
• Complete assembly ready to install
To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.
