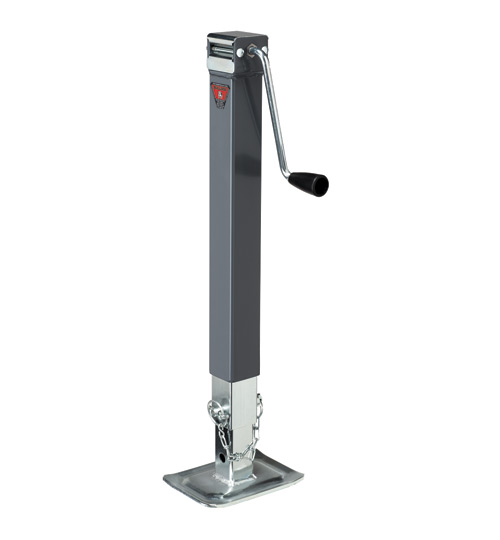

Bulldog 190754 Gray Sidewind Dropleg Jack - 8000 Pound Capacity 15 Inch Lift / 13.5 Inch Dropleg
Bulldog 190754 Gray Sidewind Dropleg Jack - 8000 Pound Capacity 15 Inch Lift / 13.5 Inch Dropleg
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Bulldog's 8,000 lb. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
Product Features:
- Use the painted outer tube as the final finish or primer Zinc-plated inner tube and drop leg
- 4.7" Outer / inner tube overlap - results in optimal side load performance
- 5/8" screw stem - provides insurance against screw stem twisting off
- Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
- Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
- Sidewind models - 1:1.33 gear ratio
Product Specifications:
- Static Load: 8,000lb
- Lift Capacity: 5,000lb
- Lift: 15"
- 2 1/2" Tube
- Limited 5-year warranty
(A) Retracted= 25.06"
(B) Extended= 53.56"
(C) Dropleg= 13"
