Dexter K71-639 Disc Brake Retrofit Kit Right Hand for Dexter 6000 lb Axles
Dexter K71-639 Disc Brake Retrofit Kit Right Hand for Dexter 6000 lb Axles
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
The Dexter K71-639 Disc Brake Retrofit Kit Right Hand for Dexter 6000 lb Axles is for one brake.
Caution: Can only be used with 15", 16”, and 16.5" wheels on a 6 on 5.50" bolt circle. Axle overhang requirement: Leaf spring axle = 9.0" per side. Torflex axle = 7.6" per side. A retrofit application will not affect the current axle outside of tire dimension. This disc brake system will not retrofit Dexter 4” drop spindle using the 2-169 spindle. The 2-169 part number is cast into the drop section of the spindle.

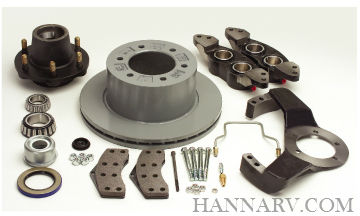

This kit includes
- (5) Hex Nut (006-193-00)
- (1) 6-5.50 Hub (008-403-05)
- (1) Seal (010-036-00)
- (1) Grease Cap (021-042-01)
- (1) Bearing Cone (031-029-02)
- (1) Bearing Cone (031-030-02)
- (1) Rotor (070-009-02)
- (1) Rubber Plug (085-001-00)
- (1) Yoke Assembly - LH (090-005-02)
- (2) Brake Pads (091-004-00)
- (1) Caliper Kit (K71-636-00)
- (1) Instruction Sheet (059-815-00)
