Buyers PU3593LR 4-Way/3-Way DC Power Unit-Electric Controls Horizontal 0.75 gallon Reservoir

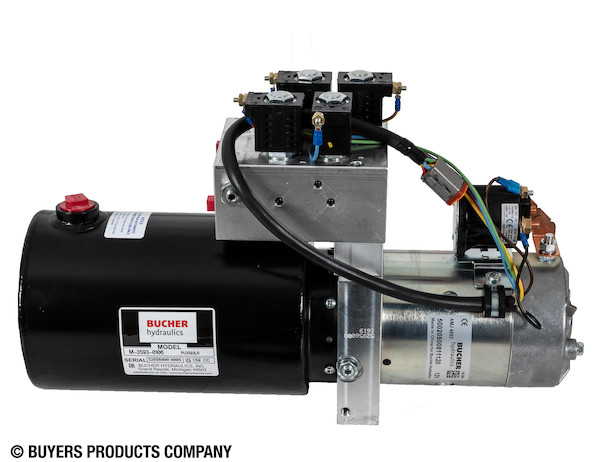

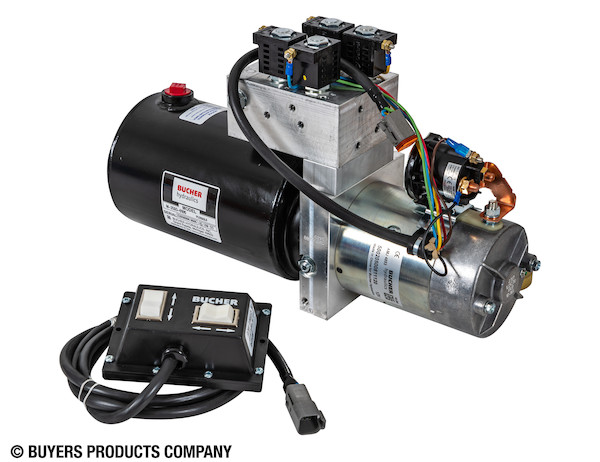

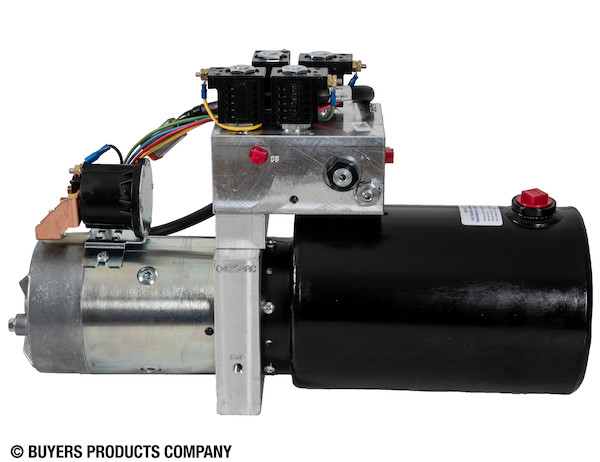

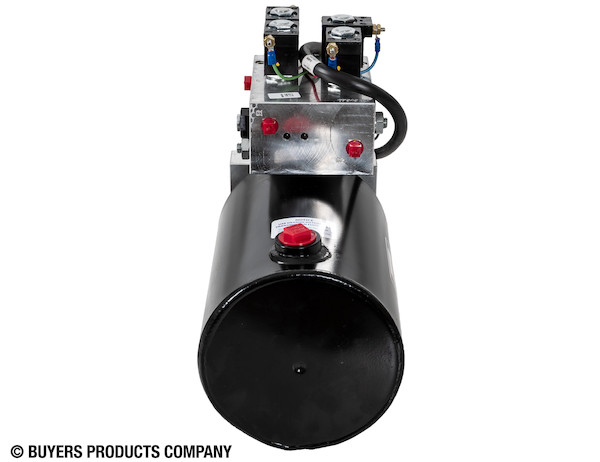

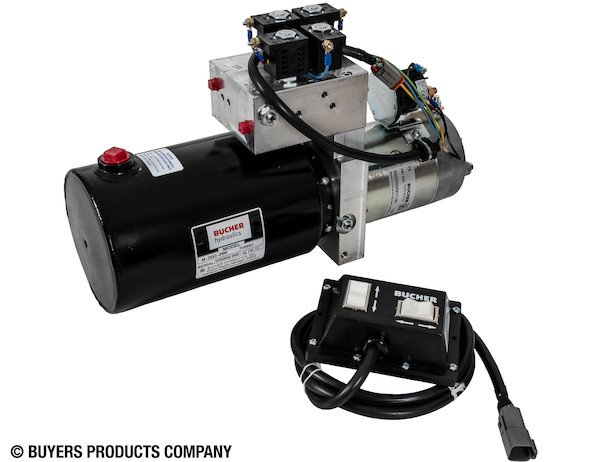

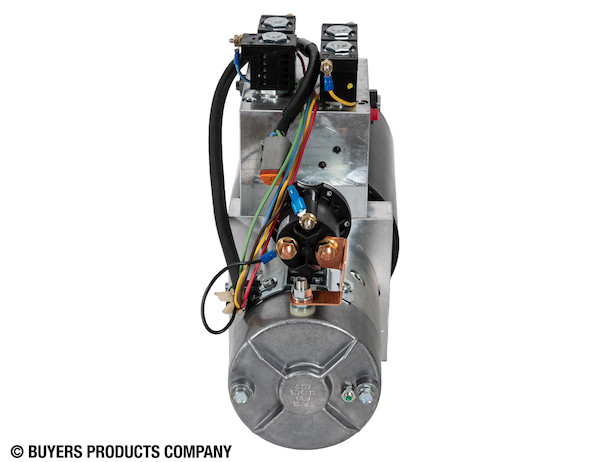

The 4 Way/3 Way DC Power Unit - Electric Controls from Buyers Products is an all-in-one, compact power pack. This horizontal-mount power unit is ideal for powering snow plow lift and angle operations. It includes pre-wired rocker switch controls that provide 4-way/3-position fingertip control for Power Up/Hold/Gravity Down (plow hoist), and 4-way for exact left-right angling of the blade. A crossover relief valve protects the angle cylinder and the plow blade should the plow strike a hidden object.
- Compact, cost-effective power for snow plow lift and angle operations.
- Includes everything you need to power the job.
- Unit contains two independent circuits: 3 way for plow hoist; 4 way for power angle.
- Easy fingertip controls.
- Crossover relief valve protects cylinder and blade should the plow strike a hidden object.
Specifications
| Control Cable Length | 72" | Controller Included? | Y |
| Height | 13.81" | Length | 17.38" |
| Manual or Push Button | Push Button | Motor Horsepower | 2 HP |
| Motor Power (kW) | 1.5 | Motor Voltage | 12 VDC |
| Mounting Position | Horizontal | Number of Cartridge Valves | 4 |
| Outlet Port Size | 1/4 NPT | Pressure Rating | 2000 PSI |
| Reservoir Material | Carbon Steel | Reservoir Usable Volume | 1.00 Gal |
| Reservoir Volume (Gal) | 0.83 | Spool Action | Power Up/Power Down |
| Spool Action | Power Up/Gravity Down | Valve Function | 3W4W |
| Width | 6.00" | Shipping Weight | 42 lb |
