Triton 09816 UT8/UT10/UT12 Trailer Wire Harness

Brands:
Product Number: TRITON-09816
Vendor Number: 09816
$83.95 $69.99

Triton 09816 UT8/UT10/UT12 Trailer Wire Harness

Product Number: TRITON-09816
Vendor Number: 09816
$83.95 $69.99 You Save $13.96 (16.6%)
Adding this item to your cart will qualify your order for US domestic

QTY:

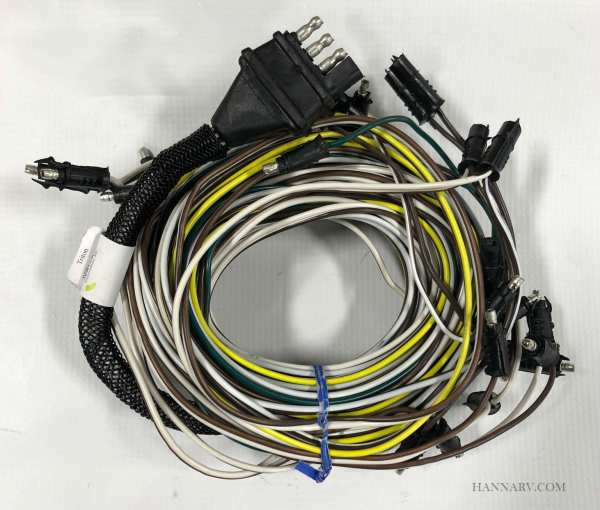

The Triton 09816 UT8/UT10/UT12 Wire Harness is the OEM wiring harness used on Triton UT8, UT10 and UT12 trailers.



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Not sure exactly what year or model of Triton trailer you have?

Click here to view our Triton VIN Number Breakdown Chart

Ask the Triton Expert:

"What is the color code for the wires on my Triton trailer?"

Most trailers have four basic wires for trailer lights. Trailers with brakes will have more for the braking systems that are available. Shown below is the basic coloring for Triton's trailers.

No Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground


Surge Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Blue/Gray= free backing valve
(goes to vehicle reverse lights)
Normally the center pole of a 7-round plug is for the free backing valve

Electric Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Red=electric brakes
Black= breakaway battery hot wire
Blue= backing lights


Any additional 12v accessories would have to be addressed separately.

Ask the Triton Expert:

"Why do I have more wires than connections going into my plug?"

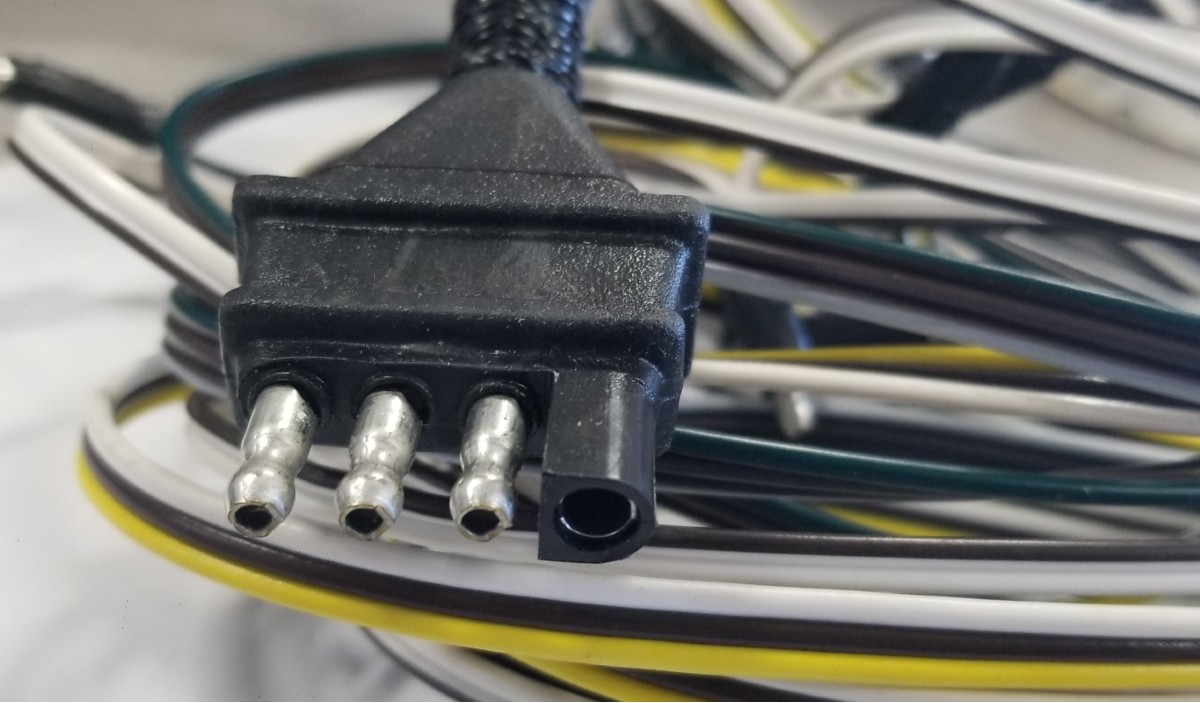

The front wire harness plugs that plugs into the vehicle may have extra wires running into them. You might notice that you will have 6 wires going into a flat four plug. Most of the time the running light wire (brown) and ground wire (white) is ran to both sides making it look like 6 wires are going into the plug. Your plug basically merges these two "like" wires together to make the standard four wire connection of yellow, green, brown, and white.

If you are splicing in a plug instead of getting a new front leader section then simply merge the two white wires and the two browns wires to go from 6 wires to 4 wires to match the new plug.
