Triton 08429 Elite 12VR/14/16 Wire Harness

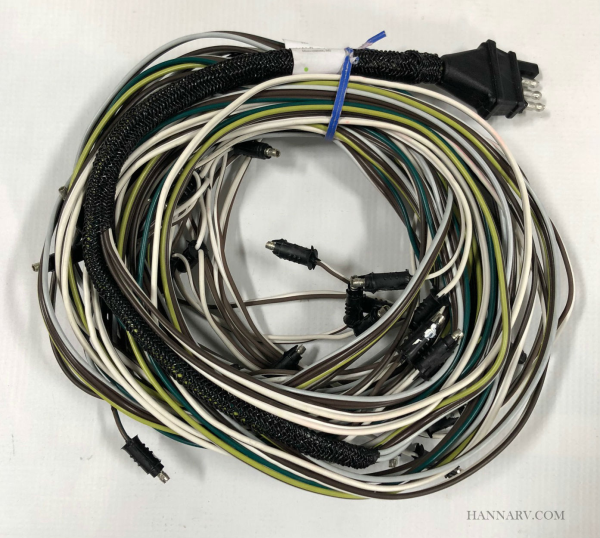

The Triton 08429 Elite 12VR/14/16 Wire Harness is the wiring harness used on the Triton Elite 12VR, XT12VR, Elite 14, XT14, Elite 16 and XT16 trailers. This works for all six models and has all of the individual connectors for all of your lights alongside of and on the back of the trailer.

The 08429 Trailer Wire Harness replaces the original wiring harness on many older Triton Elite trailers. However, the 08429 wire harness will not plug into the old original tongue harness. The old original tongue harness has been replaced by the 08423 Tongue Harness, so you would need to replace both the trailer wire harness and the tongue harness in order for the new trailer wiring to function properly.

Additional Information

Triton Snowmobile Trailers Brochure

Hanna Trailer Supply Snowmobile Trailers - Available Now!

Hanna Trailer Supply Snowmobile Trailer Parts and Accessories

A Comprehensive Guide for Getting Your Snowmobile Trailer Ready for the Season

Not sure exactly what year or model of Triton trailer you have?

Click here to view our Triton VIN Number Breakdown Chart

Ask the Triton Expert

"What is the color code for the wires on my Triton trailer?"

Most trailers have four basic wires for trailer lights. Trailers with brakes will have more for the braking systems that are available. Shown below is the basic coloring for Triton's trailers.

No Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground


Surge Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Blue/Gray= free backing valve
(goes to vehicle reverse lights)
Normally the center pole of a 7-round plug is for the free backing valve

Electric Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Red=electric brakes
Black= breakaway battery hot wire
Blue= backing lights


Any additional 12v accessories would have to be addressed separately.

"Why do I have more wires than connections going into my plug?"

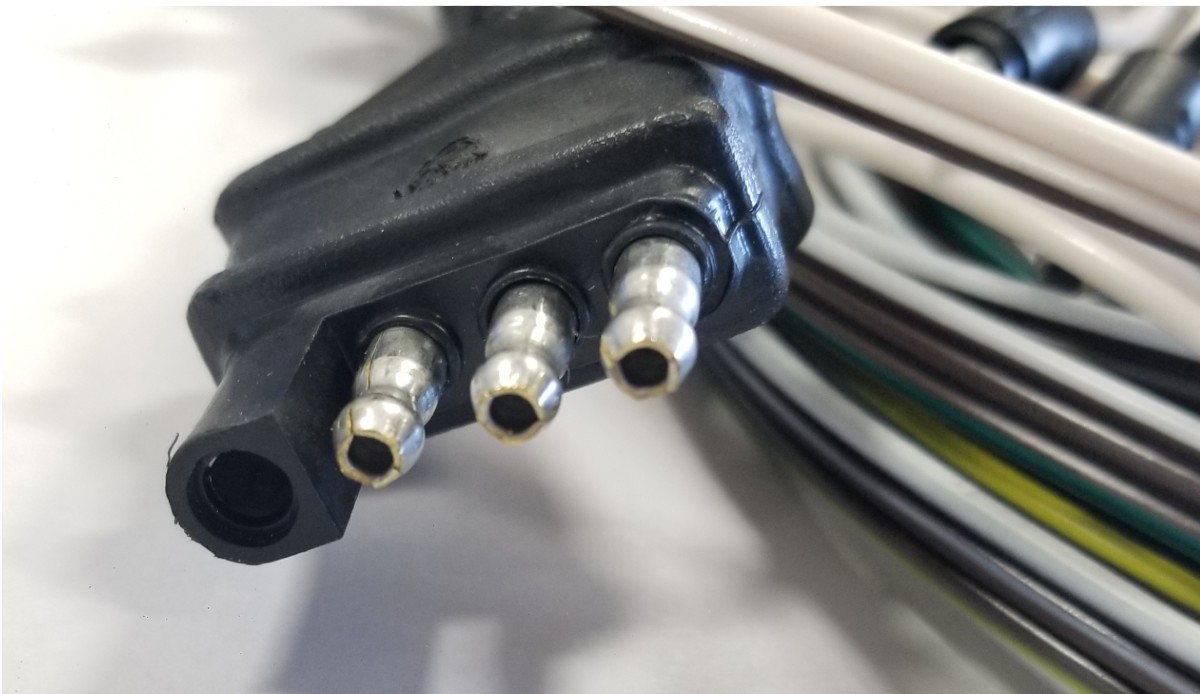

The front wire harness plugs that plugs into the vehicle may have extra wires running into them. You might notice that you will have 6 wires going into a flat four plug. Most of the time the running light wire (brown) and ground wire (white) is ran to both sides making it look like 6 wires are going into the plug. Your plug basically merges these two "like" wires together to make the standard four wire connection of yellow, green, brown, and white.

If you are splicing in a plug instead of getting a new front leader section then simply merge the two white wires and the two browns wires to go from 6 wires to 4 wires to match the new plug.
