Triton 05338 Oval Tail Light Grommet - 2 Pack

Brands:
Product Number: TRI-05338 X2
Vendor Number: 421-18 X2
$8.99 $7.99

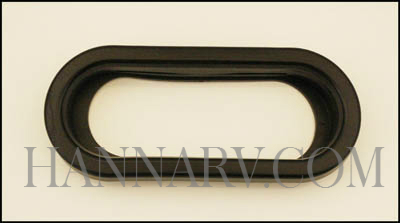

Triton 05338 Oval Tail Light Grommet - 2 Pack

Product Number: TRI-05338 X2
Vendor Number: 421-18 X2
$8.99 $7.99 You Save $1.00 (11.1%)
Add $35.00 worth of items to your cart to qualify for

QTY:

Keep your oval tail light on your Triton Trailer protected from the elements with the Triton 05338 Oval Tail Light Grommet. The Triton 05338 Oval Tail Light Grommet fits the following Triton tail lights:

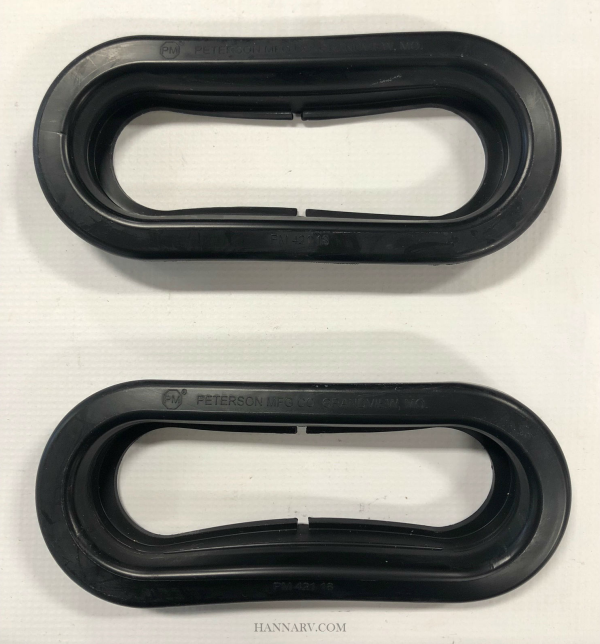

There are two grommets included per package.





Additional Information

Triton Snowmobile Trailers Brochure

Hanna Trailer Supply Snowmobile Trailers - Available Now!

Hanna Trailer Supply Snowmobile Trailer Parts and Accessories

A Comprehensive Guide for Getting Your Snowmobile Trailer Ready for the Season



Not sure exactly what year or model of Triton trailer you have?

Click here to view our Triton VIN Number Breakdown Chart



Ask the Triton Expert

"What is the color code for the wires on my Triton trailer?"

Most trailers have four basic wires for trailer lights. Trailers with brakes will have more for the braking systems that are available. Shown below is the basic coloring for Triton's trailers.

No Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground


Surge Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Blue/Gray= free backing valve
(goes to vehicle reverse lights)
Normally the center pole of a 7-round plug is for the free backing valve

Electric Brakes-
Yellow= left turn
Green= right turn
Brown= running lights
White= ground
Red=electric brakes
Black= breakaway battery hot wire
Blue= backing lights


Any additional 12v accessories would have to be addressed separately.



"Why do I have more wires than connections going into my plug?"

The front wire harness plugs that plugs into the vehicle may have extra wires running into them. You might notice that you will have 6 wires going into a flat four plug. Most of the time the running light wire (brown) and ground wire (white) is ran to both sides making it look like 6 wires are going into the plug. Your plug basically merges these two "like" wires together to make the standard four wire connection of yellow, green, brown, and white.

If you are splicing in a plug instead of getting a new front leader section then simply merge the two white wires and the two browns wires to go from 6 wires to 4 wires to match the new plug.
