Thin-Lite F8T5/CW/TWIN Twin Fluorescent 8 Watt Cool White Tube Lights G5 Base T5 Tube
Thin-Lite F8T5/CW/TWIN Twin Fluorescent 8 Watt Cool White Tube Lights G5 Base T5 Tube
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume. Thank you for your understanding.

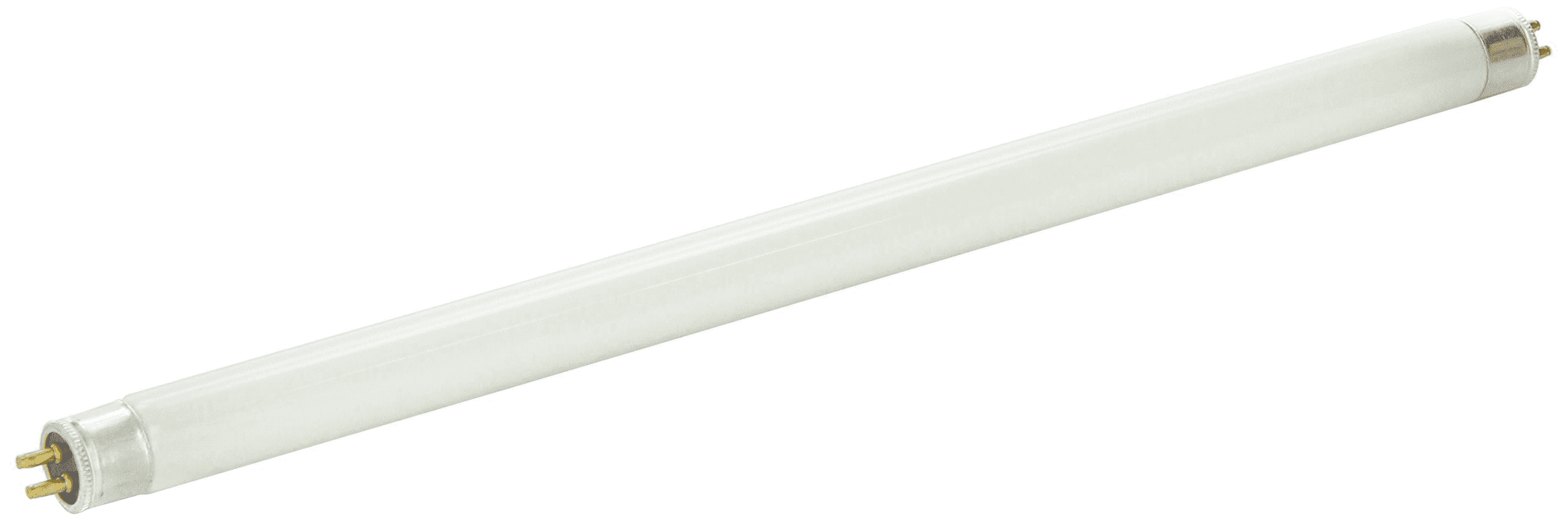

These cool white 4100K Fluorescent Tube Light bulbs produce a bluish white light that is reminiscent of moonlight on cold snow. These lights are factory tested by Thin-Lite and are approved for maximum light output and lamp life. This listing is for a twin pack of light tubes. They put out 450 lumens and are 12 inches in length.
Product Specifications
- Lamp Type: FLUORESCENT
- Watts: 8
- Base: G5
- Bulb Type: T5
- Initial Lumens: 450
- Color Temp (K): 4100
- Avg. Life (hrs.): 7500
- MOL (inches): 12
Thin-Lite Recommended Installation Procedures
Which size wire should I use for installation?
We recommend you use 16- gauge wire for optimal installation of a single fixture. Please see note below under “How much voltage drop is in my circuit?”
What is the recommended Voltage at the battery?
Test input voltage at mounting location of fixture. Thin-Lite 12VDC fixtures are designed for optimal performance with input power of 12VDC + 2 VDC/ -1.5 VDC.
How much voltage drop is on my circuit?
First, test the voltage on the circuit at the battery. Next, test the voltage at the farthest fixture on a series or loop run. Subtract the fixture voltage from the battery voltage. This is the amount of voltage you have lost through your wiring, or your voltage drop. The optimal voltage for lighting is between 13.2 volts and 10.8 volts.
How do I fix a voltage drop problem?
You can fix a voltage drop problem a few different ways:
- Increase the wire size. Larger wire has a lower resistance, and less voltage drop will occur.
- If you are using a series run, you can reduce voltage drop by changing it to a loop or T run.
CAUTION: DO NOT OVER-AMP WIRE; IT CAN CAUSE FIRE DANGER!
| Wire Guage | Max Amps | Max Watts | Resistance Per Foot |
| 12 | 16 | 192 | .00162 |
| 10 | 24 | 288 | .00108 |
| 8 | 32 | 384 | .00064 |
How do I mount the fixture? Procedure for Fluorescent Models ONLY
- Carefully remove lens. When necessary remove lamps and reflector to locate mounting holes in fixture chassis.
- Attach black wire from fixture to + (positive) power input lead with wire nut or similar connector (not supplied).
- Attach white wire from fixture to - (negative) power input lead.
- Mount fixture on flat surface. Use with at least two threaded fasteners (not supplied).
- Re-install reflector and lamp(s) and test unit for proper operation.
- Carefully re-install lens.
How do I mount the fixture? Procedure for LED Models ONLY
- Carefully remove lens. When necessary remove reflector to locate mounting holes in fixture chassis.THIN-LITES FIXTURES ARE REVERSE POLARITY PROTECTED to protect the fixture from electrical damage in case of wrong wire installation.
- Attach RED wire from fixture to + (positive) power input lead with wire nut or similar connector (not supplied).
- Attach BLACK wire from fixture to - (negative) power input lead.
- Mount fixture on flat surface. Use with at least two threaded fasteners (not supplied).
- Re-install reflector and lamp(s) and test unit for proper operation.
- Carefully re-install lens.
