Thin-Lite Model 616 Surface Mount Elegant Fluorescent Lighting Fixture 12 Volt - 20.625 x 5.53 Inches

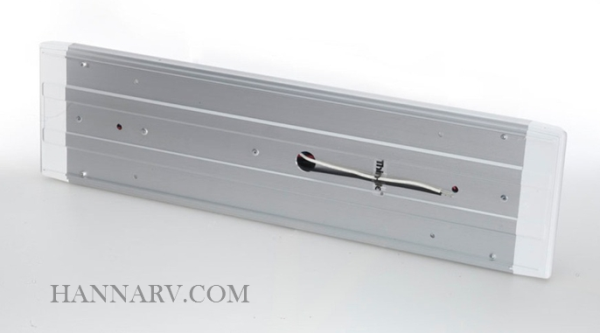

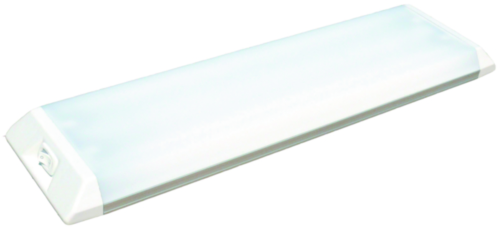

This Thin-Lite Model 616 Surface Mount Elegant Fluorescent Lighting Fixture provides efficient lighting for elegant interiors. Designed specially for O.E.Ms, it is easy to install in ceilings and under cabinets. It provides the custom made look in either the anodized aluminum housing or a molded frame. A clear acrylic diffuser lens adds the finishing touch.

Product Features and Specs

• Input Voltage: 12 Volts DC
• Wattage: 30 Watts
• Overall Dimensions : 20.625 X 5.53 X 1.57 inches
• Recessed Dimensions: N/A
• Assembly Type: Surface Mount
• Lamp Type: Fluorescent
• Lamp: F15T8/CW
• Number of Lamps: Dual Lamp
• Amperage Draw: 2.2 Amps
• Lumens: 1650 Lumens
• Lens Type: Opaque Lens
• Fixture Weight (lbs): 2.26 lbs
• On / Off Switch: Rocker Switch
• Lens Part #: D 616
• Inverter Ballast: IB


Thin-Lite Recommended Installation Procedures

Which size wire should I use for installation?
We recommend you use 16- gauge wire for optimal installation of a single fixture. Please see note below under “How much voltage drop is in my circuit?”

What is the recommended Voltage at the battery?
Test input voltage at mounting location of fixture. Thin-Lite 12VDC fixtures are designed for optimal performance with input power of 12VDC + 2 VDC/ -1.5 VDC.

How much voltage drop is on my circuit?
First, test the voltage on the circuit at the battery. Next, test the voltage at the farthest fixture on a series or loop run. Subtract the fixture voltage from the battery voltage. This is the amount of voltage you have lost through your wiring, or your voltage drop. The optimal voltage for lighting is between 13.2 volts and 10.8 volts.

How do I fix a voltage drop problem?
You can fix a voltage drop problem a few different ways:

• Increase the wire size. Larger wire has a lower resistance, and less voltage drop will occur. See table 1.
• If you are using a series run, you can reduce voltage drop by changing it to a loop or T run.

CAUTION: DO NOT OVER-AMP WIRE; IT CAN CAUSE FIRE DANGER!

How do I mount the fixture? Procedure for Fluorescent Models ONLY

1. Carefully remove lens. When necessary remove lamps and reflector to locate mounting holes in fixture chassis.
2. Attach black wire from fixture to + (positive) power input lead with wire nut or similar connector (not supplied).
3. Attach white wire from fixture to - (negative) power input lead.
4. Mount fixture on flat surface. Use with at least two threaded fasteners (not supplied).
5. Re-install reflector and lamp(s) and test unit for proper operation.
6. Carefully re-install lens.

How do I mount the fixture? Procedure for LED Models ONLY

1. Carefully remove lens. When necessary remove reflector to locate mounting holes in fixture chassis.THIN-LITES FIXTURES ARE REVERSE POLARITY PROTECTED to protect the fixture from electrical damage in case of wrong wire installation.
2. Attach RED wire from fixture to + (positive) power input lead with wire nut or similar connector (not supplied).
3. Attach BLACK wire from fixture to - (negative) power input lead.
4. Mount fixture on flat surface. Use with at least two threaded fasteners (not supplied).
5. Re-install reflector and lamp(s) and test unit for proper operation.
6. Carefully re-install lens.

Click Here To View All of Our RV LED Lights

Click Here To View All of Our RV Lighting Products

Click Here To View All of Our Light Fixtures
