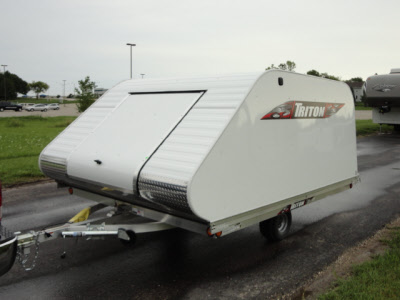

| MODEL |
XT10-101 |
| # OF SLEDS |
2 |
| BED WIDTH |
101" |
| BED LENGTH |
120" |
| OVERALL LENGTH |
172" |
| GVWR |
1880 LBS |
| CARRYING CAPACITY |
1505 LBS |
| TRAILER WEIGHT |
375 LBS |
| # OF AXLES |
1 |
| TIRE SIZE |
18.5X8 LRC |
| TILT BED |
YES |
| TONGUE STYLE |
WISH BONE |
| PLYWOOD THICKNESS |
1/2" |
Out Of Stock For The Season. Please Call For Current Price And Availability.
See The DNA Of Every Triton Trailer
COVERALL STANDARD FEATURES
ALUMINUM DIAMOND PLATE KICK PANEL AND STONE GUARD FOR PROTECTION AND DURABILITY FOR YEARS TO COME
WELDED ALUMINUM UNIBODY FRAME THROUGHOUT FOR DURABLE STRUCTURAL INTEGRITY AND HASSLE-FREE USE
STAINLESS STEEL PINS WITH LANYARD, CAN BE LOCKED INTO PLACE WITH OPTIONAL PADLOCK
TAPERED SIDE PANELS FOR BETTER AERODYNAMICS ON THE ROAD AND IMPROVED GAS MILEAGE
54" INTERIOR CLEARANCE HEIGHT
DUAL FLOW AIR VENTS FOR AIR FLOW AND MOISTURE CONTROL

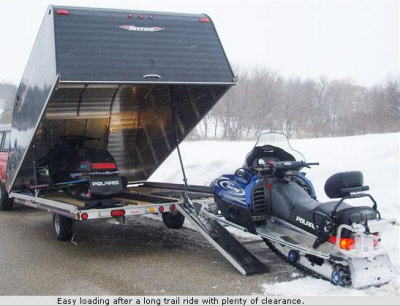

GAS SHOCK LIFT KIT OPENS THE REAR OF THE TRAILER ONLY.

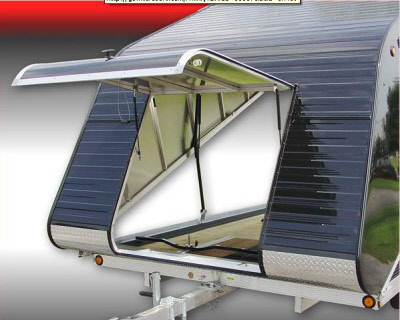

4' X4' FRONT ACESS DOOR
XT SERIES STANDARD FEATURES:
ALL ALUMINUM FRAME USING CUSTOM INTEGRATED EXTRUSIONS FOR LIGHT WEIGHT DURABILITY AND STRENGTH
E-COATED FOUR CORD RUBBER TORSION AXLES FOR A SMOOTH RIDE AND INDEPENDENT SUSPENSION.
EZ LUBE TM BUILT-IN AXLE GREASE SYSTEM FOR EASY OF MAINTENANCE AND POSITIVE PACKING OF BOTH BEARINGS AND THE HUB.
1/2" FULLY TREATED MARINE GRADE PLYWOOD WITH LIMITED LIFETIME WARRANTY FOR EXTENDED YEARS OF OUTDOOR USE.
SEALED LIGHTS AND PROTECTED WIRING FOR YEARS OF USE AND LONGER PROTECTION FROM CORROSION.
STEEL VINYL DIPPED GULLWING TIEDOWN BARS FOR SECURING YOUR SNOWMOBILES.
SAFTEY CHAINS WITH SPRING LOADED CLIPS.
TILT DECK TRAILERS COME WITH TONGUE LATCH SYSTEM TO ELIMINATE RATTLING AND POSSIBLE TONGUE DAMAGE.
ALUMINUM REAR DECK PROTECTOR PROTECTS THE BACK EDGE OF THE PLYWOOD DECK FROM DAMAGE WHEN LOADING MACHINES AND EQUIPMENT.
CAPPED AND CHROME LUG NUTS FOR BOTH STYLE AND CORROSION PROTECTION.
OPTIONAL TRAILER FEATURES
SPRING LIFT KIT TO HOLD UP THE TRAILER DECK TO HANDLE EXTRA WEIGHT OF COVER

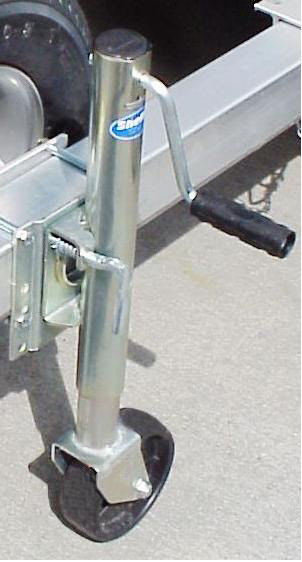

MARINE STYLE TONGUE JACK WITH WHEEL
T HANDLE BOOT TO PROTECT LOCKING HANDLE ON FRONT ACCESS DOOR |
