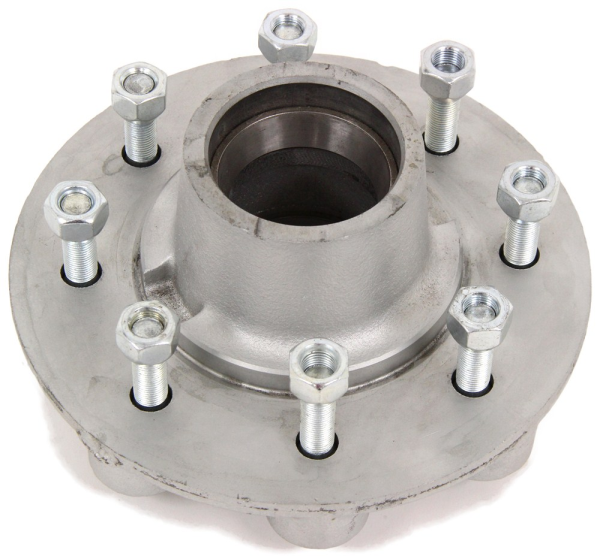

Dexter 8-231-50UC1-EZ Complete E-Z Lube Hub Assembly - 8 on 6.5 - Fits 5.2K-7K Axles - 2.25 Inch Inner Seal

Brands:
Product Number: RED-8-231-50UC1-EZ
Vendor Number: 8-231-50UC1-EZ
$179.99 $161.95

Dexter 8-231-50UC1-EZ Complete E-Z Lube Hub Assembly - 8 on 6.5 - Fits 5.2K-7K Axles - 2.25 Inch Inner Seal

Product Number: RED-8-231-50UC1-EZ
Vendor Number: 8-231-50UC1-EZ
$179.99 $161.95 You Save $18.04 (10.0%)
Adding this item to your cart will qualify your order for US domestic

Out of Stock

Dexter 8-231-50UC1-EZ Complete E-Z Lube Hub Assembly - 8 on 6.5 - Fits 5.2K-7K Axles - 2.25 Inch Inner Seal

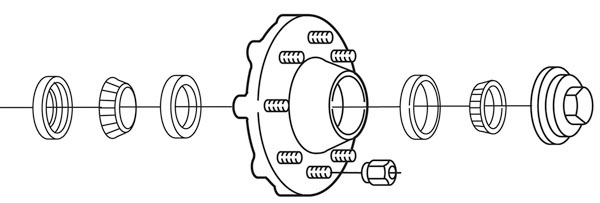

This Dexter Trailer Hub Assembly has a Galvanized finish that is great for marine use. E-Z Lube design simplifies lubrication. Fits 5,200-lb - 7,000-lb idler axles. Inner bearing (25580) and race, outer bearing (14125A) and race, grease seal, grease cap, and galvanized lug nuts included.

This item is presently on  backorder

Product Features

  • Marine-grade trailer hub assembly fits idler axles

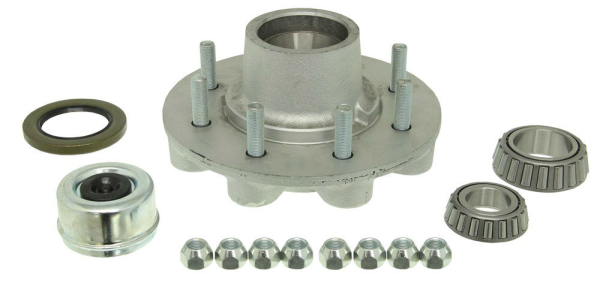

    • Includes bearings, races, grease seal, grease cap, and zinc-coated lug nuts
  • Zinc plating has a 500-hour salt spray rating
    • Ideal for use on a boat or snowmobile trailer
    • Durable enough for saltwater applications
  • E-Z Lube design makes lubricating bearings simple
    • Just remove plug on grease cap to access zerk fitting on spindle - no disassembly required

Product Specifications

  • Application: 5,200-lb, 6,000-lb, and 7,000-lb axles with #42 Spindles
  • Bolt pattern: 8 on 6-1/2"
  • Wheel studs: 1/2" diameter x 2-1/4" long
  • Weight capacity: 3,500 lbs per hub



Bearing, Race, & Seal Information

  • Bearings (included)
    • Inner bearing: 25580 (1.75" inner diameter)
    • Outer bearing: 14125A (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: 14276
  • Grease seal (included): 10-36
    • Inner diameter: 2.25"
    • Outer diameter: 3.376"







Corrosion Resistance for Marine Use

This trailer hub assembly has a zinc coating that resists corrosion, making it ideal for use on your boat or snowmobile trailer. All GAL-DEX hubs undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 500 hours of constant exposure to the saltwater mist. This 500-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater.



E-Z Lube-Compatible Hub for Simple Lubrication

The grease cap on this hub is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.





Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"



Replaces 8-231-50UC1-EZ
