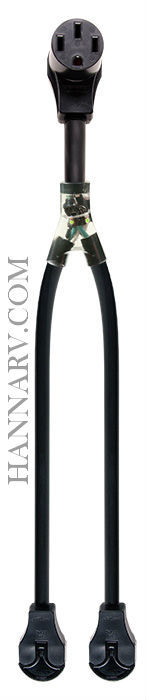

TRC 44670 Amp Up! Y Adapter

The TRC 44670 Amp Up! Y Adapter plugs into a 30 Amp outlet on separate circuits to provide a 240 Volt / 50 Amp service outlet, enabling RVs with 50 Amp service to have full use of air conditioners and appliances when only 30 Amp service is available. Indicator lights are provided for each 30 Amp plug when power is applied.

Product Features:

• One 50 Amp 120/240 Volt straight blade female receptacle.
• Two 30 Amp 120 Volt straight blade male plugs.
• Options for running both air conditioners: Option 1 – Two 30As on separate circuits. Option 2 – One 30A and one 20A adapter on second 30A.
• Allow full use of RV appliances. Easy-T-Pull handles.

CAUTION:

• Only use with RVs equipped with breakers.
• Must be used in combination with properly sized circuit breakers.
• For RV use only. Do not use for household applications.
• Do Not Use on a GFCI pedestal.
• Always check pedestal power for proper polarity prior to plugging into this adapter.
• Always use appropriate sized cable when running extension cords from the RV to AC power. To reduce the risk of electrical shock, verify that the cable is rated for outdoor use.
• Both 30 Amp connectors MUST be plugged into pedestal when in use.
• Care must be taken not to touch brass on plugs when inserting plugs into pedestal.

Operation Instructions
